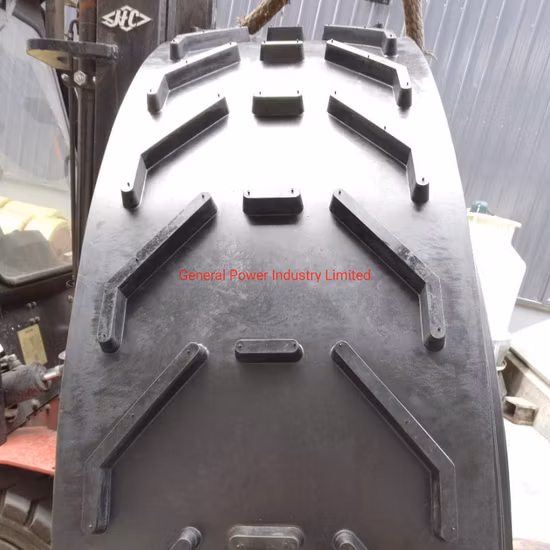

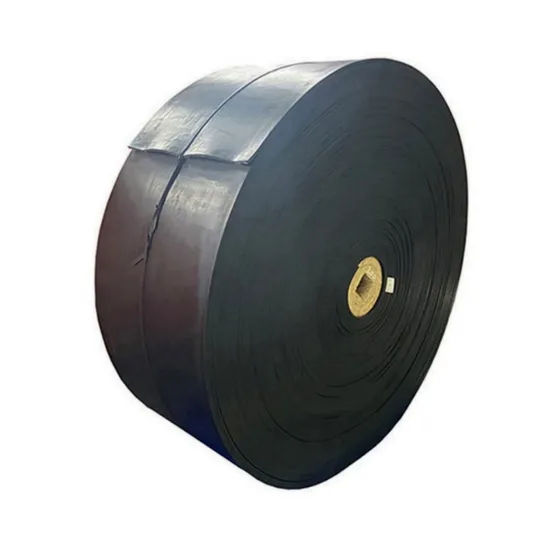

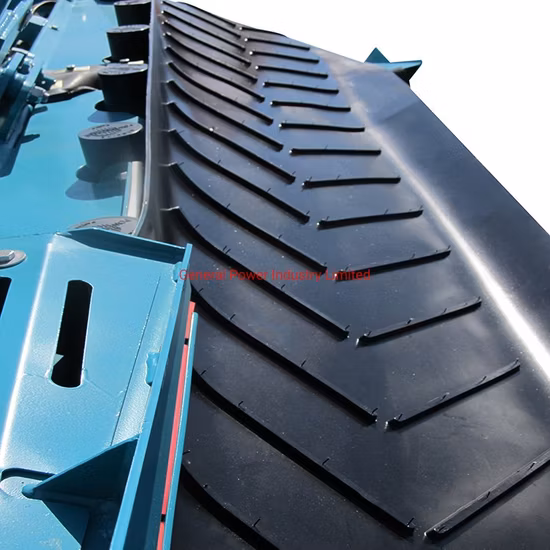

Corrugated Sidewall Rubber Conveyor Belt

Basic Info.

Model NO.	Corrugated Sidewall
Specification	GB, DIN, RMA, ISO, AS, SABS, BS
Trademark	JIUZHOU
Origin	Hebei, China
HS Code	40101200
Production Capacity	1000 Meters Per Day

Product Description

Specification:

Carcass: EP, NN, CC canvasTransverse Reinforcement: Steel wire mesh, Fabric cross rigid plyConstructure: Base belt, sidewall, cleat

Characteristcis:

1) Conveying angle 30~90ºC2) Smaller area covering;

3) Bigger throughput, higher hoisting height;

4) Smooth transition from horizontal to tilt or vertical;

5) Saving time

6) Strong conveying capacityClassify by constructure:1) Conventional type2) Transverse reinforcement type: XE, XE+2, XE-SC+2 etc
Application:Suitable for conveying easy sifted materilas in powder, granulated and small lump, paste and liquid, widely used in loading and unloading transportation systems such as ore mine, coal mine, stations and wharf to conveying materials in shape of lump, partials, and powders, etc.

Item Reference DA Type	WK 60	WK 80	WK 120	WK 160	WK 160	WK 200	WK 240	WK 300
Sidewall Height HW mm	60	80	120	160	160	200	240	300
Sidewall Bottom Width BF	50 mm	65 mm	82 mm	85 mm	75 mm	75 mm	90 mm	90 mm
Sidewall Wave BW mm	36	46	52	62	65	65	84	84
Sidewall Pitch TW mm	50	60	70	70	65	65	70	70
Sidewall Wight kg/m	1	1.38	3.04	4.4	4.65	6.20	8.30	10.85
Sidewall Amount to sq. meter	0.67	0.92	2.03	3.2	2.7	3.6	4.8	6.3
Roller Diameter mm	400	500	600	800	800	900	1000	1200
Pinch Roller Diameter mm	280	340	360	480	480	600	420	600
Cleat Height HQ mm	55	75	110	145	145	180	220	280
Cleat Bottom Width FB mm	65/80	75/70	120	TC145	TC145	TC200	TC200	TC200
Cleat Amount to sq. meter	0.6 0.67	1.02 1.0	1.713 1.83	2.37	2.30	3.39	5.0	6.6
Cleat Applicable Angle	TC - 90
Inset mm	60-300
